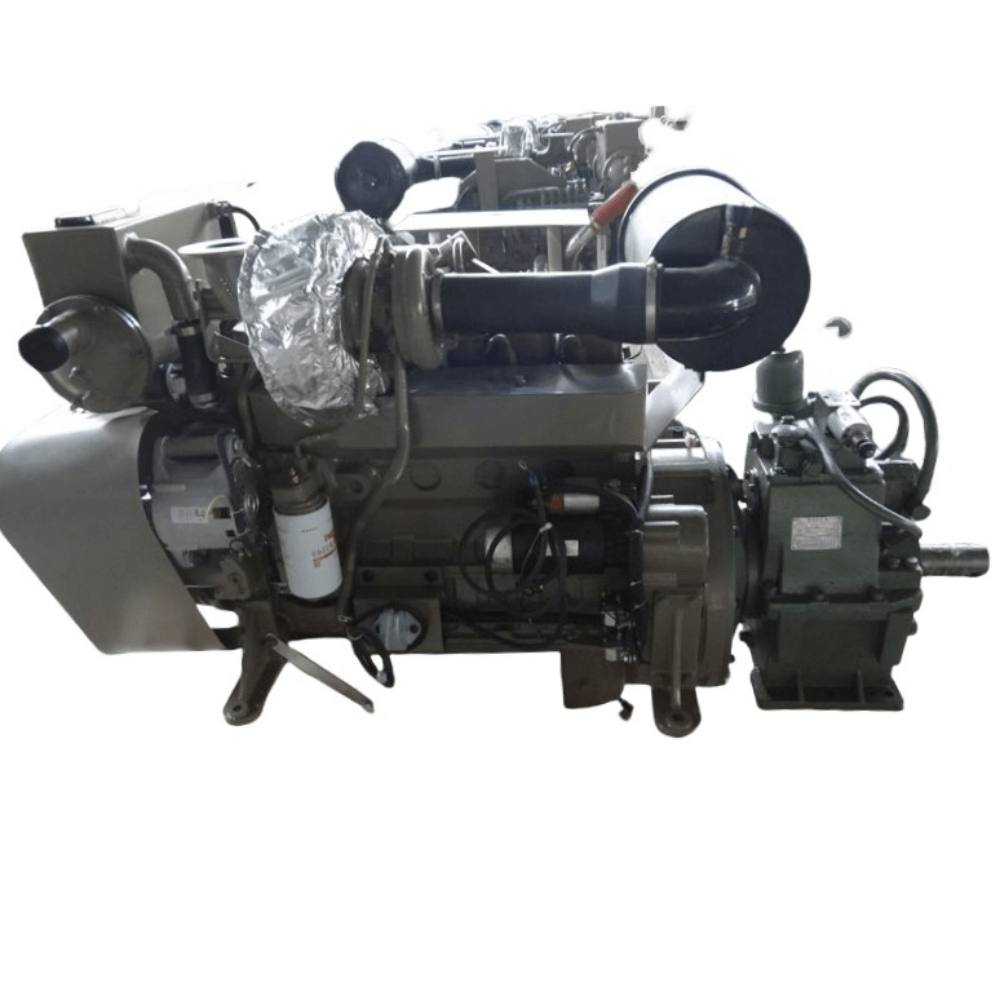

| 6BT5.9-M150 110KW 150HP Marine Diesel Engine- General Information |
| Model: 6BT5.9-M150 |
| Type: 6 Cylinders in Line |
| Displacement: 5.9 L |
| Bore * Stroke: 102 * 120 |
| Net Weight (with flywheel & alternator): 443 Kg |
| Overall Dimension: 1100mm*750mm*988mm |
| Manufacture Plant: Dongfeng Cummins Plant |
| 6BT5.9-M150 – Performance Data |
| Rated Power/Speed: 110 kW/150HP |
| Rated Speed: 2200 rpm |
| Max Torque/Speed: 616 N.m @ 1400 rpm |
| Torque/Rated Speed: 478 N.m @ 2200 rpm |
| Low Idle Speed: 750±100 rpm |
| Fuel Consumption (Running Speed): ≤263 g/kW.hr |
| 6BT5.9-M150 – Technical Specification |
| Certification: CCS Certificates |
| Aspiration: Turbocharged |
| Fuel System: Wuxi Weifu AD Pump/RSV Governor |
| Starting System: Electrical Start (12V/24V) |
| Governor Type: Mechanical Control |
| Lowest Starting Temp Without auxiliary system: -12℃ |
| Engine Cooling Fluid Volume: 10.4 L |
| Cooling Method: Sea water pump, Heat exchanger, Water cooled |
| Rated power: 110 kW (150HP); Rated speed: 2200 rpm; |
| Packing Details: Dimension: 1200* 900* 1200 mm, G.W: 550 KG |
