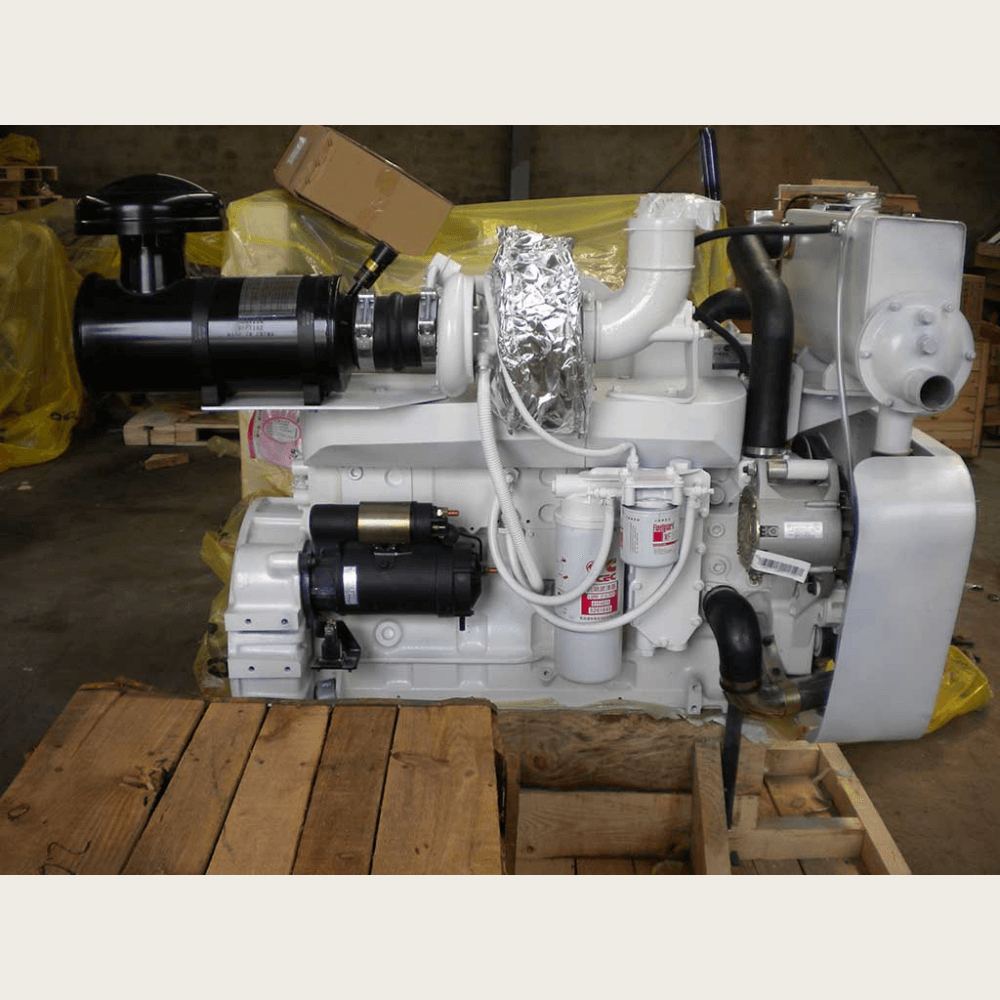

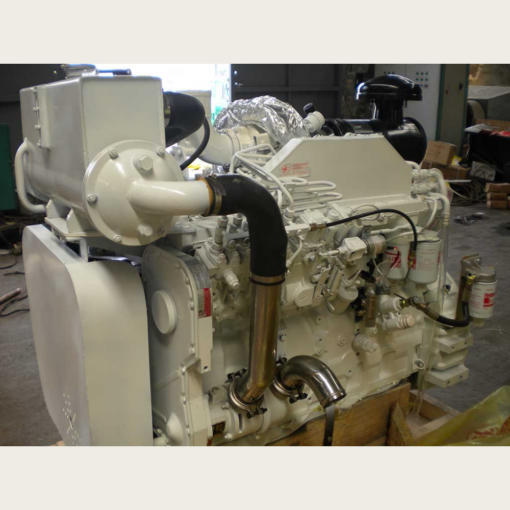

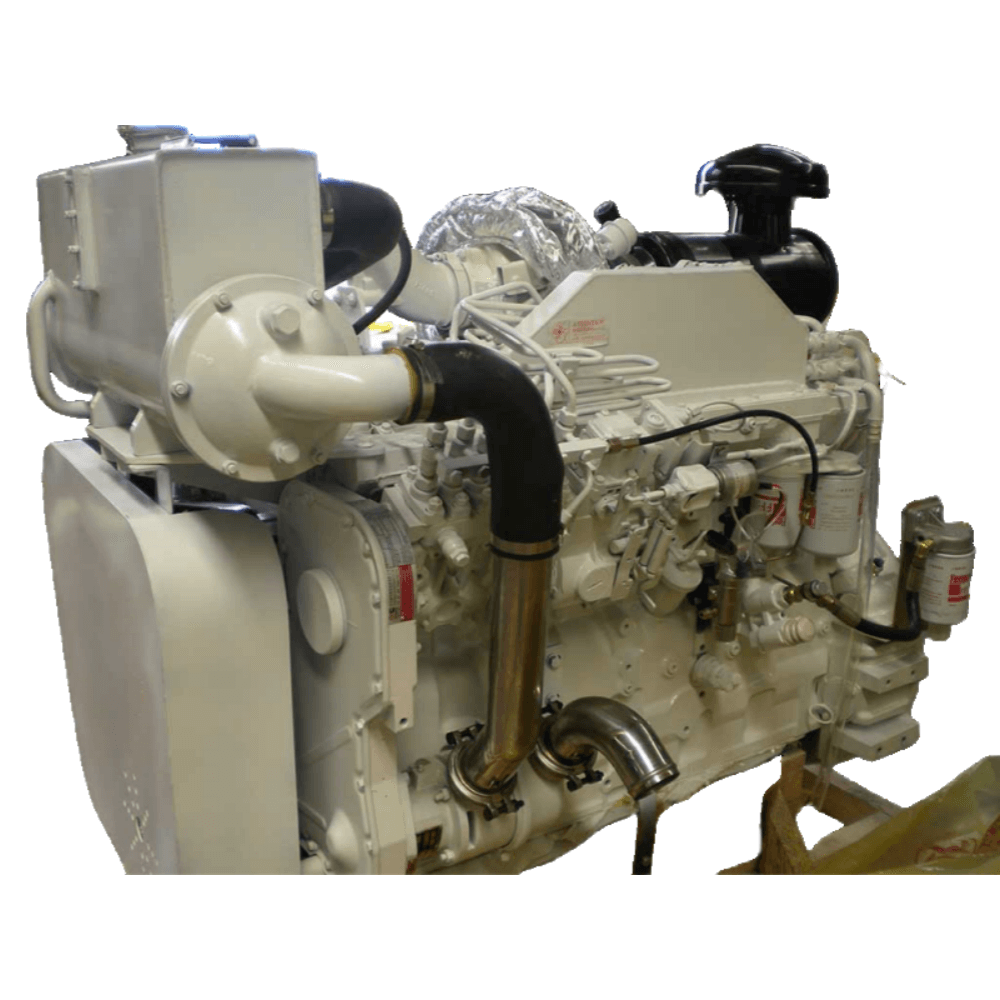

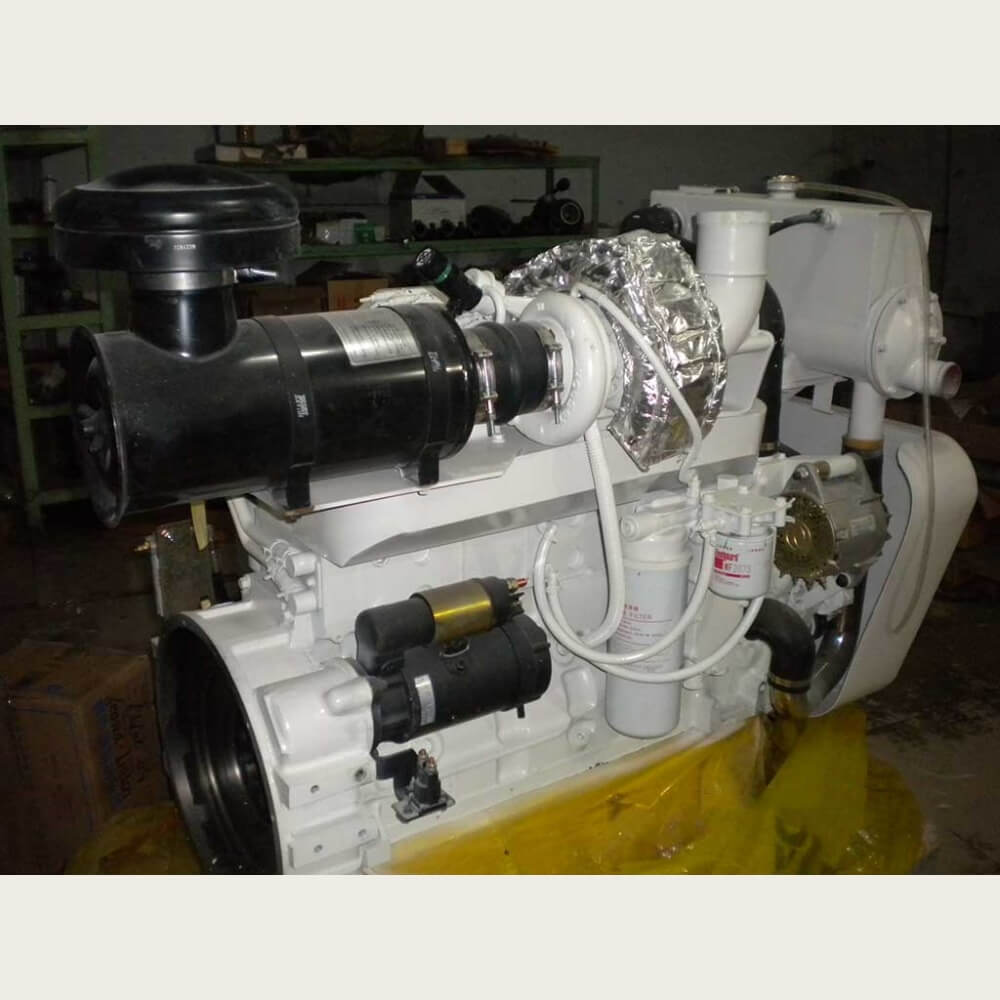

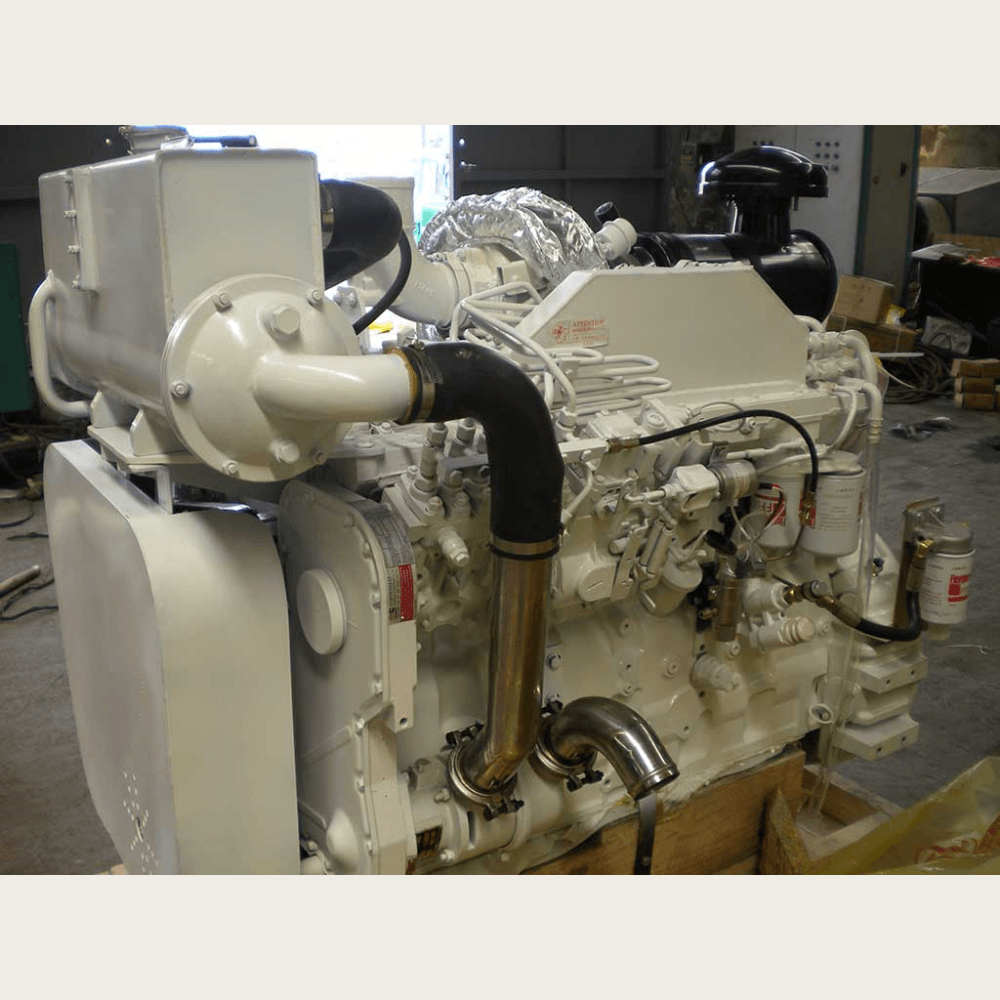

| 6CTA8.3-M220 164KW 220HP Marine Diesel Engine- General Information |
| Model: 6CTA8.3-M220 |
| Type: 6 Cylinders in Line |
| Displacement: 8.3 L |
| Bore * Stroke: 114 * 135 |
| Net Weight (with flywheel & alternator): 674 Kg |
| Overall Dimension: 1360mm*780mm*988mm |
| Engine Configuration No.: D413065MX03 |
| Manufacture Plant: Dongfeng Cummins Plant |
| 6CTA8.3-M220 – Performance Data |
| Rated Power/Speed: 164 kW/220HP @ 1800 rpm |
| Max. Power/Rated Speed: 180 kW/ 242HP @ 1858 rpm |
| Max Torque/Speed: 1000 N.m @ 1500 rpm |
| Torque/Rated Speed: 954 N.m @ 1800 rpm |
| Low Idle Speed: 630-730 rpm |
| High Idle Speed: 2025-2125 rpm |
| Fuel Consumption (Running Speed): ≤ 49 L/hr |
| 6CTA8.3-M220 – Technical Specification |
| Certification: CCS Certificates |
| Aspiration: Turbocharged/Water-air cooled |
| Fuel System: BYC PB Pump/R801 Governor |
| Starting System: Electrical Start (12V/24V) |
| Governor Type: Mechanical Control |
| Compression Radio: 17.3:1 |
| Engine Cooling Fluid Volume: 12.3 L |
| Lowest Starting Temp Without auxiliary system: -12℃ |
| Cooling Method: Sea water pump, Heat exchanger, Water cooled |
| Rated power: 164 kW (220HP); Rated speed: 1800 rpm; |
| Packing Details: Dimension: 1500* 900* 1200 mm, G.W: 800 KG |
