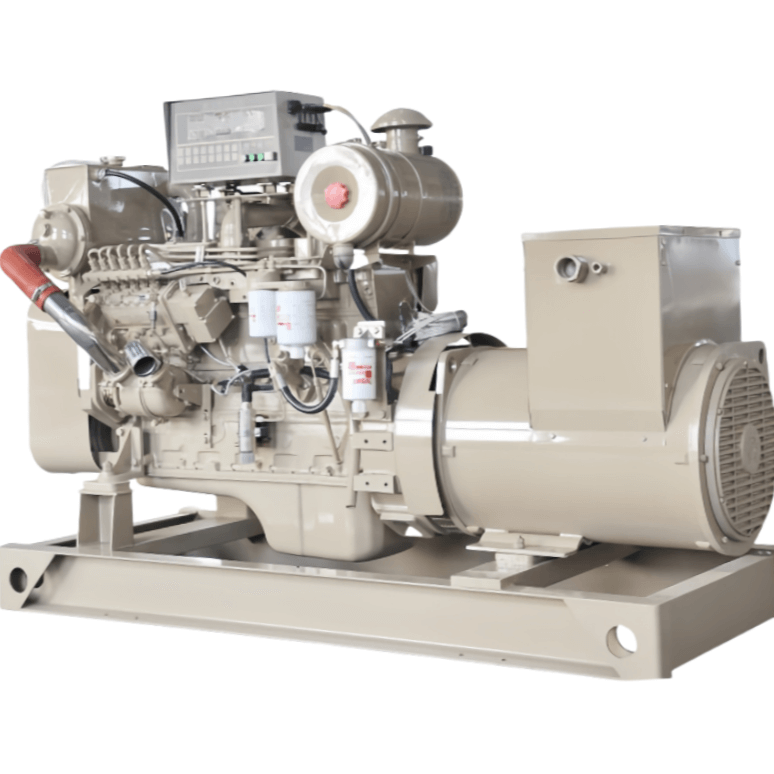

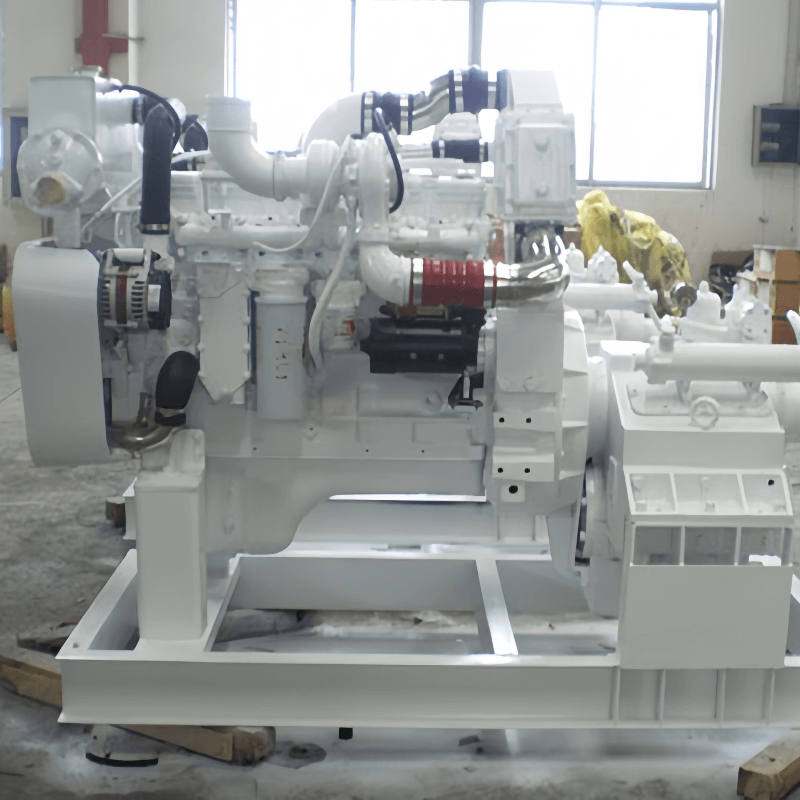

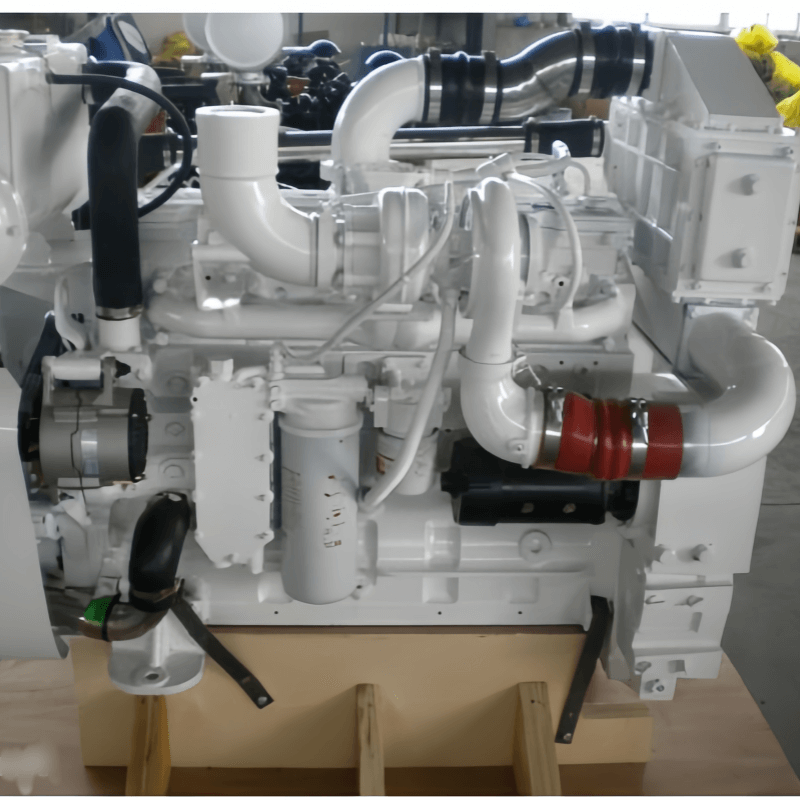

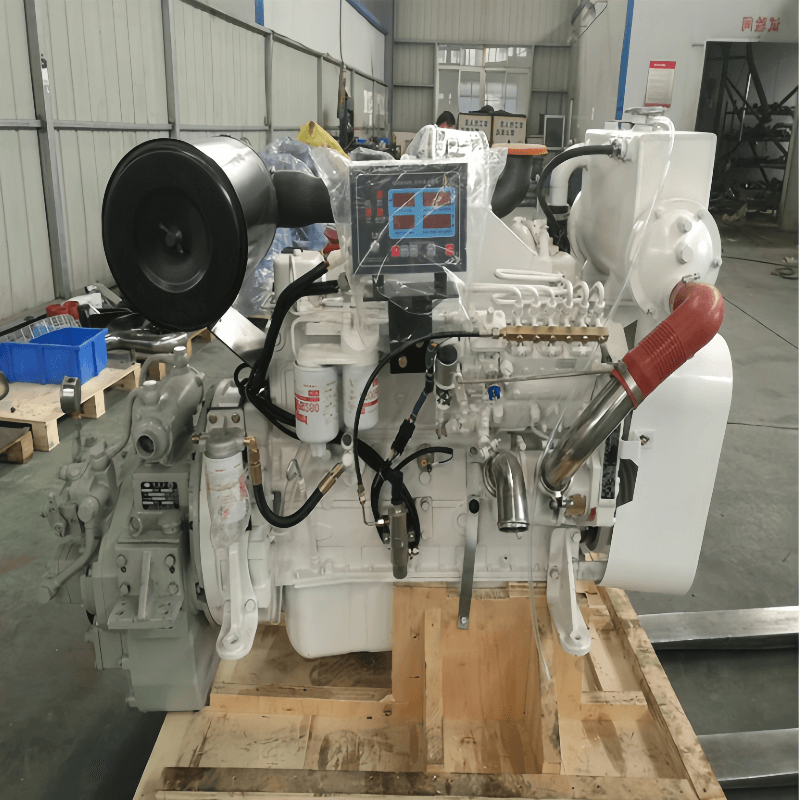

| 6LTAA8.9-GM200 200KW 268HP Marine Diesel Engine- General Information |
| Model: 6LTAA8.9-GM200 |
| Type: 6 Cylinders in Line |
| Displacement: 8.9 L |
| Bore * Stroke: 114 * 145 |
| Net Weight (with flywheel & alternator): 650 Kg |
| Overall Dimension: 1149mm*799mm*1022mm |
| Engine Configuration No.: D563014MX03 |
| Manufacture Plant: Dongfeng Cummins Plant |
| 6LTAA8.9-GM200 – Performance Data |
| Rated Power/Speed: 200 kW/268HP @ 1500 rpm |
| Standby Power: 220 kW/295HP @ 1500 rpm |
| Continuous Output/Speed: 175 kW/235HP @ 1500 rpm |
| Low Idle Speed: 1000±50 rpm |
| Fuel Consumption (Running Speed): ≤ 231 g/kW.hr |
| 6LTAA8.9-GM200 – Technical Specification |
| Certification: CCS/IMO Certificates |
| Aspiration: Turbocharged/Charge Air Cooled |
| Fuel System: BYC P7100 Pump/GAC R801 Governor |
| Compression Ratio: 16.6:1 |
| Starting Method: Electrical/Air Start (12V/24V) |
| Lowest Starting Temp Without auxiliary system: -12℃ |
| Engine Cooling Fluid Volume: 11.1 L |
| Ignition Order: 1-5-3-6-2-4 |
| Cooling Method: Water Cooled |
| Rated power: 200 kW (268HP); Rated speed: 1500 rpm; |
| Standby power: 220 kW (295HP) |
| Packing Details: Dimension: 1400* 900* 1100 mm, G.W: 800 KG |
