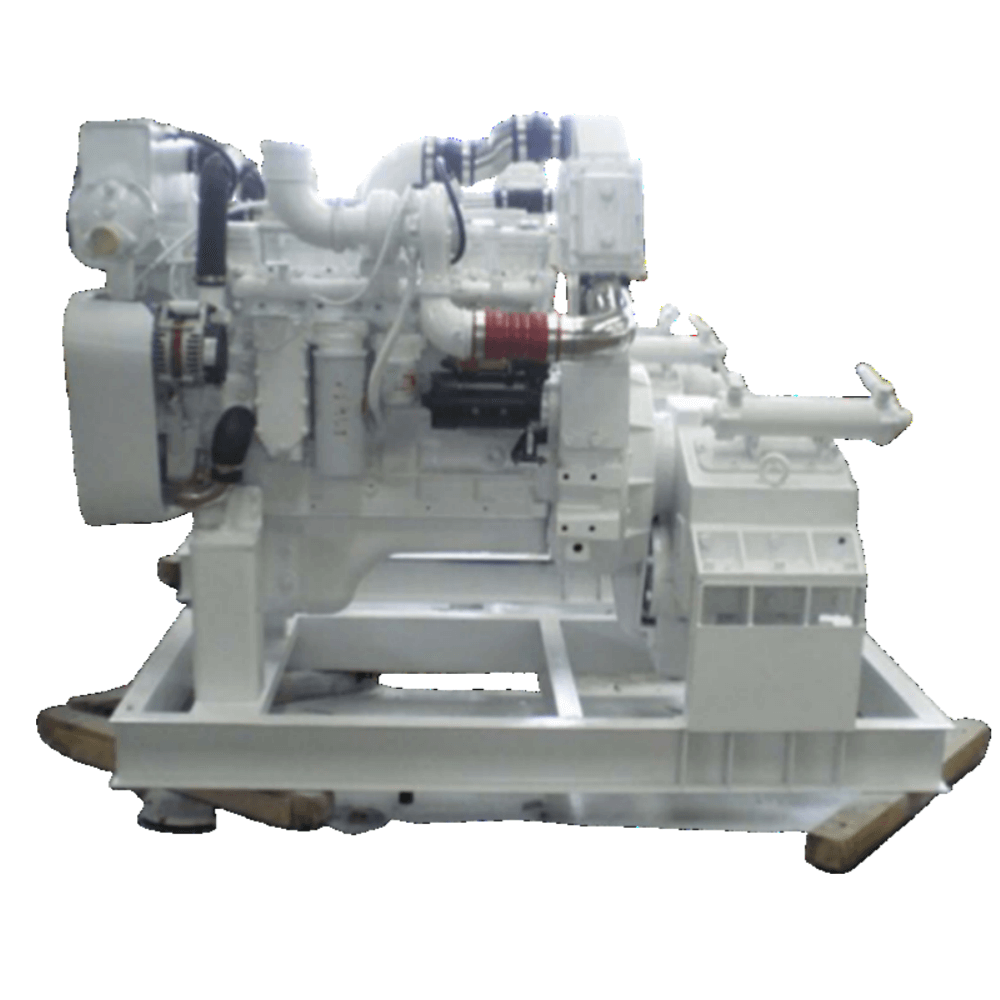

| 6LTAA8.9-M300 224KW 300HP Marine Diesel Engine- General Information |
| Model: 6LTAA8.9-M300 |
| Type: 6 Cylinders in Line, 4 Stroke |
| Displacement: 8.9 L |
| Bore * Stroke: 114 * 145 |
| Net Weight (with flywheel & alternator): 674 Kg |
| Overall Dimension: 1360mm*780mm*988mm |
| 6LTAA8.9-M300 – Performance Data |
| Rated Power/Speed: 224 kW/188HP @ 1800 rpm |
| Max. Power/rated Speed: 245 kW/328HP @ 1858 rpm |
| Max Torque/Speed: 1250 N.m @ 1400 rpm |
| Torque/Rated Speed: 1295 N.m @ 1800 rpm |
| Low Idle Speed: 630-830 rpm |
| High Idle Speed: 2100 rpm |
| Fuel Consumption (Running Speed): ≤ 64 L/hr |
| 6LTAA8.9-M300 – Technical Specification |
| Certification: CCS Certificates |
| Aspiration: Turbocharged/Air-air Cooled |
| Fuel System: Weifu PW2000 Pump/RQV-K Governor |
| Starting System: Electrical Start (12V/24V) |
| Governor Type: Mechanical Control |
| Compression Radio: 16.6:1 |
| Engine Cooling Fluid Volume: 11.1 L |
| Lowest Starting Temp Without auxiliary system: -12℃ |
| Cooling Method: Sea water pump, Heat exchanger, Water cooled |
| Rated power: 224 kW (300HP); Rated speed: 1800 rpm; |
| Packing Details: Dimension: 1500* 900* 1200 mm, G.W: 800 KG |
