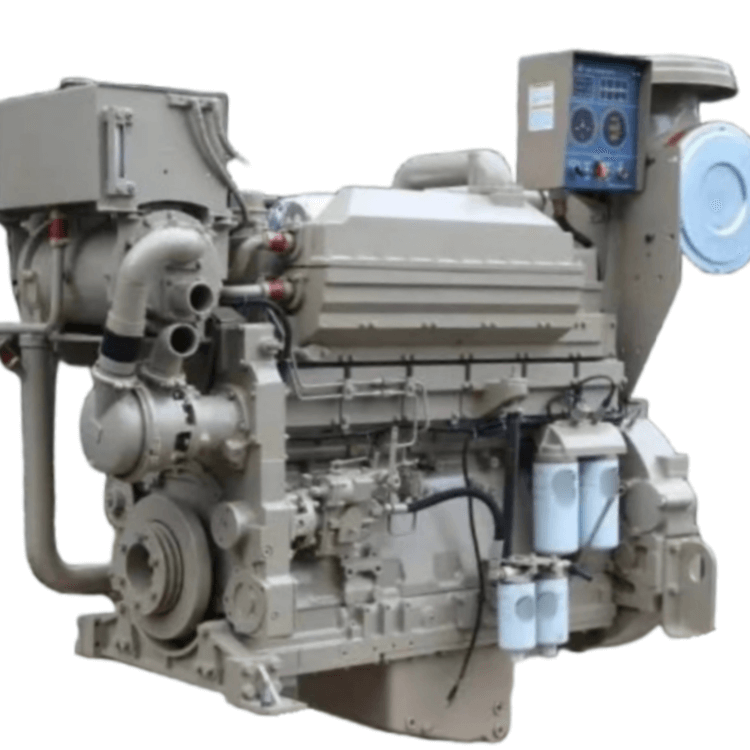

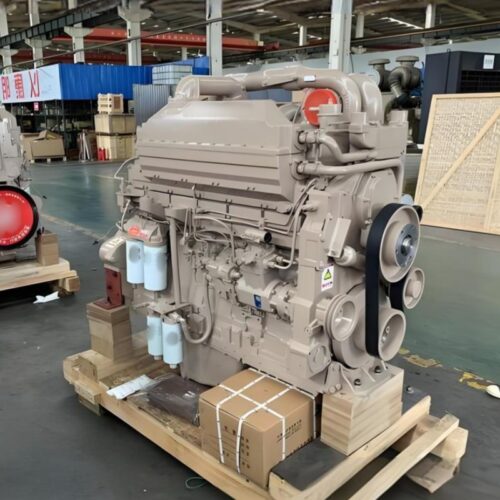

| KTA19-M500 373KW 500HP Marine Diesel Engine – General Information |
| Model: KTA19-M500 |
| Type: 6 Cylinders in Line, 4 strokes |
| Displacement: 19 L |
| Bore * Stroke: 159 * 159 |
| Net Weight (with flywheel & alternator): 1906 Kg |
| Overall Dimension: 1666mm*874mm*1377mm |
| Manufacture Plant: Chongqing Cummins Plant |
| Engine Configuration No.: D192064MX02 |
| KTA19-M500 – Performance Data |
| Rated Power/Speed: 373 kW/500HP |
| Rated Speed: 1800 rpm |
| Rating Type: Continuous Running Power |
| Max Torque/Speed: 2077 N.m @ 1500 rpm |
| Low Idle Speed: 675-775 rpm |
| High Idle Speed: 1962-2106 rpm |
| Fuel Consumption (Running Speed): 90 L/hr |
| KTA19-M500 – Technical Specification |
| Certification: CCS/IMO Certificates |
| Aspiration: Turbocharged/Aftercooled |
| Fuel System: Cummins Pressure Time (PT Pump) |
| Starting System: Electrical Start (24V) |
| Governor Type: Mechanical Control |
| Compression Radio: 15.5:1 |
| Lowest Starting Temp Without auxiliary system: -12℃ |
| Cooling Method: Sea water pump, Heat exchanger, Water cooled |
| Rated power: 373 kW (500HP); Rated speed: 1800 rpm; |
| Packing Details: Dimension: 2000* 1100* 1600 mm, G.W: 2000 KG |
